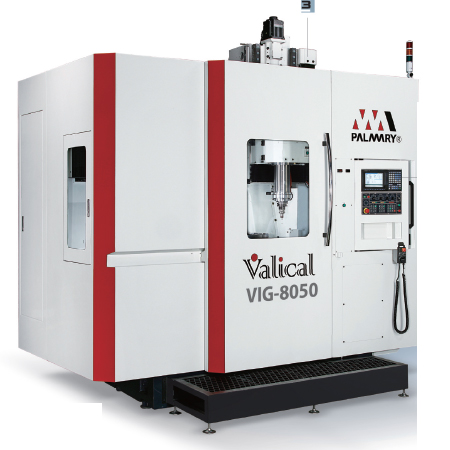

VIG 8050

grinding machine
  • Vertical internal and external composite grinder, with original research, design and experience to maximise savings and output.
  • Honeycomb type machine structure
  • Manufactured from Meehanite cast iron
  • X & Z axis are equipped with special cross roller type linear guideway


Read about Palmary head office

ModelInternal grinding range mm70-700 diam
CapacityMax External grinding diameterMax 700 diam
Z axis max external length500
Z axis max internal grinding length70-270 = 325 diam
270 - 700 = 500 diam
Max workplace swivel800
Max workpiece length600 incl. clamo
TraverseMax workplace load850
X axis longitudinal traverse1000
Grinding SpindleZ axis vertical traverse650
Z axis external grinding wheel1000-8000
Z axis external grinding wheel diameter100-200 (diam)
Z axis external grinding wheel nose hole typeBBT .50
Z axis internal grinding wheel diameter50-150 (diam)
1 axis internal greinding wheel spindle nose hole typeBBT .50
Work Tablework spindle speed12-200
work table size800 diam
screw nutsize for T-grooveM20
InfeedWork chuck size450 (18")
X/Z axis rapid traverse10
Z/S axis cutting speed0-6000
X/Z micro movement each graduation0.1, 1.0, 10
X/Z micro movement each graduation0.001, 0.01, 0.1
X/Z axis min setting unit0.001
ATCX/Z guideway typeLinear Guideway
Auto wheel charge number6
Store room typeRound Plate Stand
Wheel spindle nose tool holderBBT.50
MotorWheel auto change typeZ/X axis servo
External grinding wheel motor7.5
Work spindle motor7.5
Coolant pump motor2.6
Dressing device hydraulic pump motar0.75
Tank capacityLubrication system motor20
Hydraulic oil tank24
Auto electric lubricator tank6
Oil cooler tank16
Pneumatic tank30
Coolant tank500
Power SupplyPower45KVA
Machine DimensionsLxWxH3500 x 3200 x 3600
Net Weight140,000
Control SystemModelMitsubishi
