- Ergonomically designed
- Slideways lubricated by static pressure automatic system, offering smooth movement and maximum wear resistance
- All grinding is automatically operated, offering high accuracy, convenient and enhancing productivity.
- Workhead spindle runs on a precision roller that allows for silent running

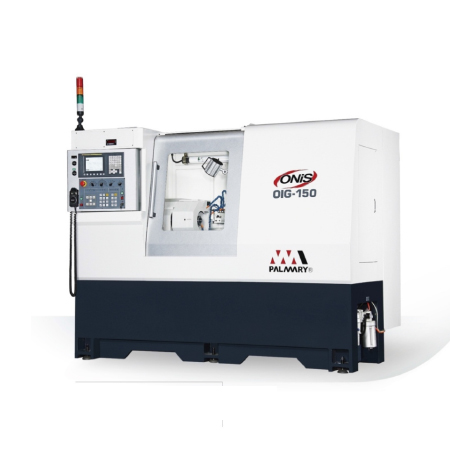

| Model | OIG-150 |
|---|---|
| Grinding Capacity | 6-150mm |
| Max workpiece length | 150mm |
| Swivel over table dia. | 520mm |
| Inside chuck guard swivel | 320mm |
| Max table taverse | 540mm |
| Max table feed speed | 5m/min |
| Spindle speed | 0-550RPM |
| X-asis feed speed | 5m/min |
| X-axis minimum travel unit | 0.001mm |
| Z-axis min travel unit | 0.001mm |
| Workhead swivel | F 8, B 7 |
| Hydraulic oil tank | 60L |
| Workhead motor | 1HP, 4P (inverter) |
| Hydraulc pump motor | 1HP, 4P |
| Grinding wheel motor | 2HP, 2P (inverter) |
| Coolant pump motor | 1/8HP, 4P |
| X-axis servo motor | 1,8kW |
| Z-axis servo motor | 1.8kW |
| Machine weight | 2300kg |
