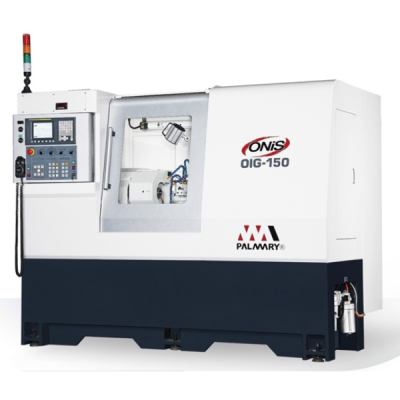

The new ONiS CNC Internal Grinding Machine from PALMARY features optimal structural design, and an elegant appearance combined with advanced CNC control. The all new ONiS serries will bring internal grinding techology into a new area. The structural parts of the machine are manufactured from high quality cast iron for deformation-free performance, year after year.
The entire machine is precision built throughout to guaranteee the best grinding accuracy you can find anywhere.
| Model | OIG-200 |
|---|---|
| Grinding Capacity | 6-200 |
| Max workpiece length | 200 |
| Swivel over table dia. | 400 |
| Inside chuck guard swivel | 280 |
| Max table taverse | 400 |
| Max table feed speed | 5m/min |
| Spindle speed | 0-550RPM |
| X-asis feed speed | 5m/min |
| X-axis minimum travel unit | 0.001mm |
| Z-axis min travel unit | 0.001mm |
| Workhead swivel | F 8, B 7 |
| Hydraulic oil tank | 60L |
| Workhead motor | 1HP4P |
| Hydraulc pump motor | 1HP4P |
| Grinding wheel motor | 2HP, 4P |
| Coolant pump motor | 1/8HP 4P |
| X-axis servo motor | 1.8kW |
| Z-axis servo motor | 1.8kW |
| Machine weight | 5750kg |
