Servo Drive

PC-12S/18S/1810S/1812S/20S/24S/2410S/2412S

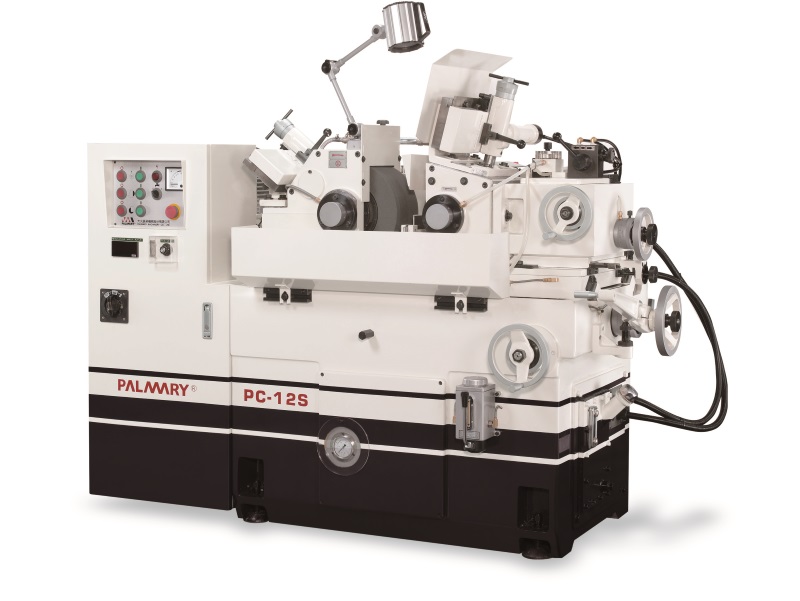

PC-12S / 18S / 1810S / 1812S / 20S

  • Regulating wheel is driven by servo motor
  • Low speed, high torque output
  • Easy to operate and adjust

PC-24S / 2410S / 2412S

  • High speed series
  • High peripheral speed of grinding wheel (up to 3000 m/min) provides increased efficiency
  • Hydraulically operated dressing for grinding and regulating wheel
  • Regulating wheel speeds available

Read about Palmary head office



SPECIFICATIONSPC-12S-NCPC-18S-NCPC-1810S-NCPC-1812S-NCPC-20S-NC
Grinding Wheel
Standard grinding range (Dia.)Ø1~Ø40 mmØ1~Ø80 mmØ1~Ø80 mmØ1~Ø80 mmØ1~Ø80 mm
Capacity increases with special arrangementØ30~Ø60 mmØ40~Ø150 mmØ40~Ø150 mmØ40~Ø150 mmØ40~Ø150 mm
Grinding wheel size (O.D. x width x I.D.)Ø305 x 150 x Ø120Ø455 x 205 x Ø228.6Ø455 x 255 x Ø228.6Ø455 x 305 x Ø228.6Ø510 x 205 x Ø304.8
Grinding wheel speed1900 R.P.M.1500 R.P.M.1260 R.P.M.1260 R.P.M.1200 R.P.M.
Grinding wheel motor7-1/2 HP x 4P15 HP x 4P15 HP x 4P20 HP x 4P20 HP x 4P
Regulating Wheel
Regulating Wheel size (O.D. x width x I.D.)Ø205 x 150 x Ø90Ø255 x 205 x Ø111.2Ø255 x 255 x Ø111.2Ø255 x 305 x Ø111.2Ø305 x 205 x Ø127
Regulating Wheel speed10 ~ 300 R.P.M. (Variable)10~300 R.P.M. (Variable)10~300 R.P.M. (Variable)10~300 R.P.M. (Variable)10~300 R.P.M. (Variable)
Regulating Wheel motor / S series1.5 KW servo motor3.0 KW servo motor3.0 KW servo motor3.5 KW servo motor3.5 KW servo motor
Regulating Wheel tilt angle+5° ~ -3°+5° ~ -3°+5° ~ -3°+5° ~ -3°+5° ~ -3°
Regulating Wheel swivel angle±5°±5°±5°±5°±5°
Handwheel Graduation
Upper slide feed graduation4 mm/rev.   0.025 mm/graduation3.5 mm/rev.  0.05 mm/graduation3.5 mm/rev.  0.05 mm/graduation3.5 mm/rev.  0.05 mm/graduation3.5 mm/rev.  0.05 mm/graduation
Upper slide micro-feed graduation0.1 mm/rev.   0.001 mm/graduation0.1 mm/rev.  0.001 mm/graduation0.1 mm/rev.  0.001 mm/graduation0.1 mm/rev.  0.001 mm/graduation0.1 mm/rev.  0.001 mm/graduation
Lower slide feed graduation7 mm/rev.  0.05 mm/graduation9 mm/rev. 0.05 mm/graduation9 mm/rev. 0.05 mm/graduation9 mm/rev. 0.05 mm/graduation9 mm/rev. 0.05 mm/graduation
Trimming device graduation0.2 mm/rev.  0.001 mm/graduation2 mm/rev.  0.01 mm/graduation2 mm/rev.  0.01 mm/graduation2 mm/rev.  0.01 mm/graduation2 mm/rev.  0.01 mm/graduation
Drive Motors1.25 mm/rev.   0.01 mm/graduation
Hydraulic pump motor1 HP x 4P1 HP x 4P1 HP x 4P1 HP x 4P
Coolant pump motor1 HP x 4P1/4 HP x 2P1/4 HP x 2P1/4 HP x 2P1/4 HP x 2P
Machine Dimensions1/8 HP x 2P2200 x 1840 x 1530 mm2200 x 1840 x 1530 mm2350 x 1950 x 1530 mm2350 x 1900 x 1530 mm
Net weight3000 kgs3000 kgs3500 kgs3600 kgs
Gross weight1750 x 1050 x 1400 mm3300 kgs3300 kgs3800 kgs3900 kgs
Packing dimensions1700 kgs2450 x 1940 x 1900 mm2450 x 1940 x 1900 mm2690 x 2100 x 1900 mm2690 x 2100 x 1900 mm
1950 kgs
SpecificationsPC-24SPC2410SPC-2412S
Grinding Wheel
Standard range (dia.)1-100mm1-100mm
Wheel size (O.D. x Width x I.D)610 x 205 x 304.8mm610 x 205 x 304.8mm610 x 305 x 355.6mm
Motor30 HP x 430 HP x 430 HP x 4
Speed1400 RPM1400 RPM1400 RPM
Regulating Wheel
Speed15-300 RPM15-300 RPM15-300 RPM
Size (O.D. x Width x I.D.)305 x 205 x 127 mm305 x 2055 x 127 mm305 x 305 x 127 mm
Motor5 kW servo motor5 kW servo motor5 kW servo motor
Tilt Angle-2 / +5-2 / +5-2 / +5
Swivel Angle+ - 3+ - 3+ - 3
Drive Motors
Hydraulic motor0.75kW0.75kW0.75kW
Coolant motor1/2 HP1/2 HP1 HP
Machine Dimensions
Net Weight4500kg4800kg6000kg
Gross Weight4850kg5150kg6400kg
