NC Servo

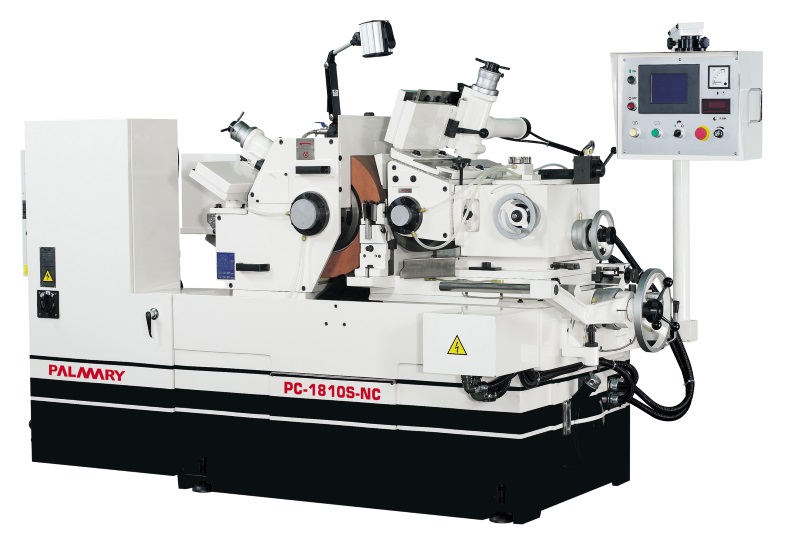

PC-12S-NC / 18S-NC/1810S-NC/1812S-NC/20S-NC

PC-12S-NC / 18S-NC/1810S-NC/1812S-NC/20S-NC

  • Equipped with touch sensing screen with teach in operational control
  • Easy to adjust siszes. Easy to learn and understand without the need to edit programs.
  • PLC controls oil temperature to reduce errors to a minimum
  • Servo control for feeding mechanism with accurate micrometric feed adjustment
  • Variable speed for regulating wheel spindle
  • Available to equip with automatic dressing and compensation function (optional)

See more about the Palmary range.

Read about Palmary head office

SpecificationsPC-12S-NCPC-18S-NCPC-180S-NCPC18125-NCPC-20S-NC
Grinding Wheel
Standard range (dia.)1-40mm1-80mm1-80mm1-80mm1-80mm
Capacity increases30-60mm40-150mm40-150mm40-150mm40-150mm
Wheel size (O.D. x Width x I.D)305 x 150 x 120455 x 205 x 228.6455 x 255 x 228.60455 x 305 x 228.6510 x 205 x 304.8
Speed1900 RPM1260 RPM1260 RPM1260 RPM1200 RPM
Motor7.5 HP x 4P15HP x 4P15HP x 4P20HP x 4P20HP x 4P
Regulating Wheel
Size (O.D. x Width x I.D.)205 x 150 x 90 255 x 205 x 11.2255 x255 x 111.2255 x 305 x 111.2 305 x 205 x 127
Speed10-300 RPM10-300 RPM10-300 RPM10-300 RPM10-300 RPM
Motor1.5 kW servo motor3 kW servo motor3 kW servo motor3.5 kW servo motor5kW servo motor
Tilt Angle+5 / -3 +5 / -3 +5 / -3 +5 / -3 +5 / -3
Swivel Angle+ -5+ -5+ -5+ -5+ -5
Handwheel Graduation
Upper slide feed4mm/rev  0.025mm/grad3.5mm/rev 0.05 mm/grad3.5mm/rev 0.05 mm/grad3.5mm/rev 0.05 mm/grad3.5mm/rev 0.05 mm/grad
Upper slide micro feed0.1 mm/rev 0.001mm/grad0.1 mm/rev 0.001mm/grad0.1 mm/rev 0.001mm/grad0.1 mm/rev 0.001mm/grad0.1 mm/rev 0.001mm/grad
Lower slide feed7mm/rev  0.05mm/grad9mm/rev  0.05mm/grad9mm/rev  0.05mm/grad9mm/rev  0.05mm/grad9mm/rev  0.05mm/grad
Trimming 1.25 mm/rev   0.01mm/grad2 mm/rev   0.01mm/grad2 mm/rev   0.01mm/grad2 mm/rev   0.01mm/grad2 mm/rev   0.01mm/grad
Drive Motors
Hydraulic motor1 HP x 4P0.75kW0.75kW0.75kW0.75kW
Coolant motor1/8 HP x 2P1/4 HP x P1/4 HP x 2P1/4 HP x 2P1/4 HP x 2P
Machine Dimensions
Net Weight1700kg3000kg3000kg3500 kg3600 kg
Gross Weight1950kg3300 kg3300 kg3800 kg3900 kg
