CNC

FCL-12/18/1810/1812/20

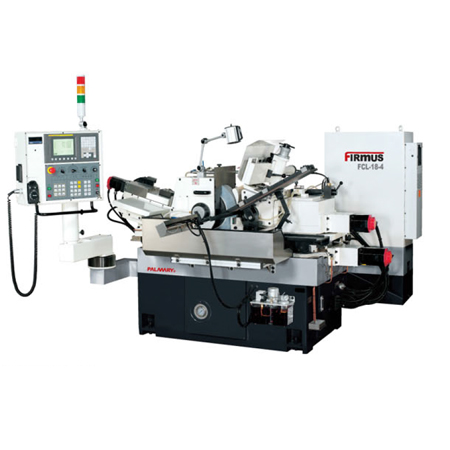

FCL-18-4

  • 4 axes servo drive
  • CNC Control
  • Grinding range 1-60mm
  • Grinding wheel sizes 455 x 205 x 2286mm

FCL-12-1

  • One axis servo drive
  • CNC Control
  • Grinding range – 1-40mm
  • Grinding Wheel 305x150x120mm

FCL-1812-3

  • 3 axes servo drive
  • CNC control
  • Grinding range 1-60mm
  • Grinding size 455 x 305 x 228.6mm

FCL-1810-1

  • One axis servo drive
  • CNC control
  • Grinding range 1-60mm
  • Grinding wheel size 455 x 255 x 228.6mm

FCL-20

  • CNC control
  • Grinding range 1-60mm
  • Grinding wheel size 510 x 205 x 304.8mm



Read about Palmary head office

SpecificationsFCL-12FCL-18FCL-1810FCL-1812FCL-20
Grinding Wheel
Standard Range1-40mm1-60mm1-60mm1-60mm1-60mm
Capacity30-60mm30-150mm30-150mm30-150mm30-150mm
Size305 x 150 x 120455 x 205 x 228.6455 x 255 x 228.6455 x 305 x 228.6510 x 205 x 304.8
Speed1900 RPM1500 RPM1500 RPM1500 RPM1200 RPM
Motor7 1/2 HP x 4P15HP x 4P15 HP x 4P20 HP x 4P20 HP x 4P
Regulating Wheel
Size205 x 150 x 90255 x 205 x 11.2255 x 255 x 111.2255 x 305 x 111.2305 x 205 x 127
Speed10 - 300 RPM10 -300 RPM 10 - 300 RPM10 - 300 RPM1- 300 RPM
Motor1.5 KW servo motor3.5 kW servo motor 3.5 kW servo motor3.5 kW servo motor3.5 kW servo motor
Tilt Angle5/-35/-35/-35/-35/-3
Swivel Angle+ -5+ -5+ -5+ -5+ -5
Handwheel Graduation
Upper slide feed4mm/rev  00.25 mm/grad3.5 mm/rev  0.053.5 mm/rev  0.05mm/grad3.5 mm/rev  0.05mm/grad3.5 mm/rev  0.05mm/grad
Upper slide micro-feed0.1mm/rev  0.001 mm/grad0.1mm/rev  0.001 mm/grad0.1mm/rev  0.001 mm/grad0.1mm/rev  0.001 mm/grad0.1mm/rev  0.001 mm/grad
Lower slide feed7mm/rev  0.05mm/grad9mm/rev  0.05mm/grad9mm/rev  0.05mm/grad9mm/rev  0.05mm/grad9mm/rev  0.05mm/grad
Lower slide micro-feed0.2mm/rev  0.001mm/grad0.2mm/rev  0.001mm/grad0.2mm/rev  0.001mm/grad0.2mm/rev  0.001mm/grad0.2mm/rev  0.001mm/grad
Trimming device2mm/rev 0.01mm/grad2mm/rev 0.01mm/grad2mm/rev 0.01mm/grad2mm/rev 0.01mm/grad2mm/rev 0.01mm/grad
Drive Motors
Hydraulic pump1HP x 4P1HP x 4P1HP x 4P1HP x 4P1HP x 4P
Coolant pump1/8 HP x 2P1/4HP x 2P1/4HP x 2P1/4HP x 2P1/4HP x 2P
Net weight17002900300034003700
Gross weight20003200330037004000
