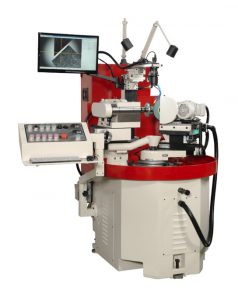

FC-250EX Diamond/CBN Wheel Truing & Dressing Machine

See video of the machine here:

FC-250EX is a semi-automatic grinding wheel finisher, drawn with the machine’s special CCD application Auto cad to DXF loading can be processed easily render the size and contour, double R angle, round groove knife, sharp corners small R-shaped Jieke to be varied in accordance with the demand of processing.

Machine operation with PLC man-machine touch + hand wheel control, feed, rotation, swing can be set to automatically through grinding, but also to make some quick small amount of light through the hand wheel mode grinding, if closed or an air conditioning plant also matching full face sheet metal to prevent dust and cutting fluid exposed to the air.

Components
Diamond Grinding Wheel Spindle HSK50A(up to customer)
Diamond Grinding Wheel X axis 157mm
Diamond Grinding Wheel Y axis 130mm
SIC Wheel Spindle(Green) 0.75KW
SIC Wheel-Oscillation axis 90mm
SIC Wheel side- Z axis (Infeed) 60mm (serve motor)
Moving Precision 1μ=0.001mm
Rotation Angle Stroke -90° ~ +90°
(Equipped with High Performance Swiveling Angle Reader )
Grinding Wheel
Grinding Wheel(GW) Diameter Ø50mm-Ø250mm(Max)
Grinding Wheel(sic) Dimension Ø(175×12×31.75)mm
Grinding Speed
GW’s Rotation Speed 100-1000rpm
SIC Wheel Rotation Speed 200-2000rpm
Camera System
CCD Camera System

PLC Control

15-60time

User interface
